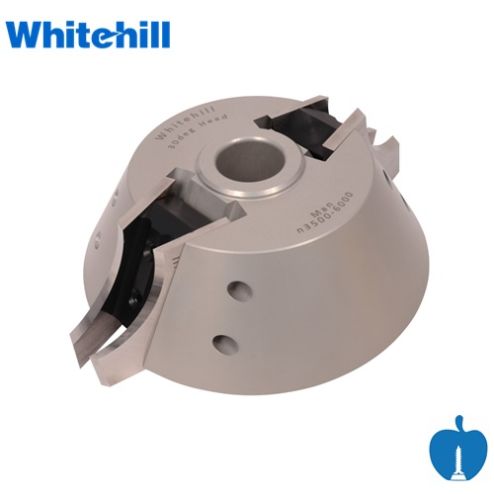

Whitehill 175mm 30° Cone Head,

60mm in Height with 30mm Bore

Whitehill Part Code 110A00020

Specifications

Diameter = 175mm

Height = 60mm

Bore = 30mm

Max Cut Diameter = 228mm

Min RPM = 3500RPM

Max RPM = 6000RPM

Product Material = ALUMINIUM

Manual Feed

Knives & Limitors Not Included but also availble from Appleby's

175 x 60 x 30 mm Bore 30 Degree profile limiter head for large projection mouldings. Profiled knives and chip limiters must always be used in pairs. Compatible with cone standard blanks 60 x 80 x 6 mm thick and large version - 70 x 85 x 6 mm. Cutter head can be used Under and Over the wood. Block suitable for spindle moulders with manual feed. Tool Body in Aluminium.

Our in house Tool designer Jeremy Appleby will be happy to provide free of charge assistance via Telephone, Whats App group messages and Emails.

Picture is for advert purposes and items will be exactly as described.
