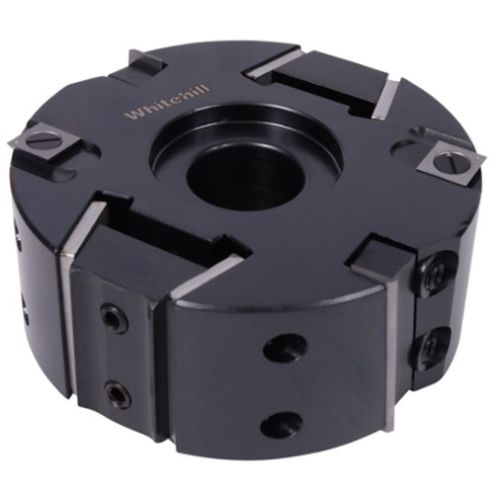

Whitehill 125 x 55 x 30 mm Bore Felder / Hammer Combi Rebate Head Flush Mounted with Washer to Suit M10 x 220 Long Bolt

Whitehill 125 x 55 x 30 mm Bore Felder / Hammer Combi Rebate Head Flush Mounted with Washer to Suit M10 x 220 Long Bolt

Whitehill Reference: 070S00070

Spindle shaft quick change system

Recessed for flush mounting to allow timber to be passed over the top of the block. Ideal for long tenon profiling on a spindle with a sliding table.

Supplied with Washer to suit M10 x 220 C/Sunk Bolt, Red Pin Spanner for machine without a lock.

Specifications:

Height: 55mm

Diameter: 125mm

Suitable for MDF: Yes

Max rpm: 7500rpm

Number of Cutters: 2

Number of Spurs: 4

Shear or Straight: Shear

Product Material: Steel

MAN or MEC: MAN

Minimum rpm: 4000rpm

Bore Diameter: 30mm

Please do not hesitate to contact our in-house technical advisors via webchat for free of charge technical advice.

Picture is for illustration purposes only.
