Trend Universal Subbase C/W Pins & Bush UNIBASE

Trend Universal Subbase C/W Pins & Bush UNIBASE

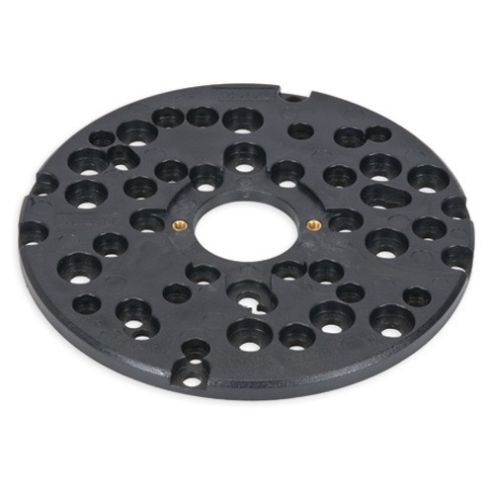

The Unibase enables routers with non-standard guide bush fittings to accept the range of Trend guide bushes. It will fit directly to most routers.

Line-up pin used with a 16mm plastic bush to ensure concentricity of the cutter to the guide bush when fitting the sub-base.

Suits collet sizes 1/4 inch, 8mm, 12mm and 1/2 inch.

Instructions for fitting

The line-up pin fit into the collet and is plunged through the router base. The line-up bush is fitted into the Unibase and secured. This is then placed over the line-up pin and rotated in order to line up the fixing holes. The Unibase screws are tightened and then the line-up bush can be replaced with any choice of Trend guide bushes. These range from 10mm up to 30mm (GB10 - GB32). For larger diameter cutters a 40mm guide bush (GB40) is available.

Ideal for hinge jig and lock jig

This product includes:

1 x Line up pin 8 & 12 mm shank

1 x Guide bush 16 mm

1 x Fixing screw pack

Please do not hesitate to contact our in-house Woodwork machinist by live chat, for free of charge technical advice.

Note picture is for advert purposes only.
