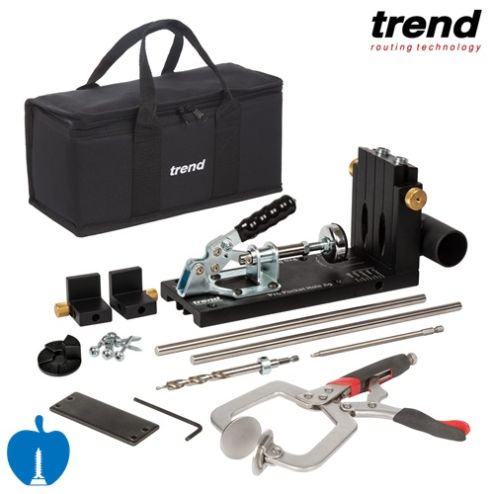

Trend Pro Pocket Hole Jig

Trend Pro Pocket Hole Jig

PH/JIG/AK

For Fast and accurate joining of timber and plywood giving strong instant joints.

Adjustable height to allow material from 12.7mm to 38mm to be jointed.

Solid hardened bushes with fixed pitch of 30mm.

Use on timber, MDF, Plywood and blockboard.

Workpiece support and end stop.

Allows a variety of joints to be created individually.

Quick and easy drill bit depth setting turret.

Dust extraction spout.

Square drive self-tapping screws for use with a NO.2 square drive bit to resist slipping.

This product includes:

10 x No.7 x 25mm (1 inch) coarse

30 x No.7 x 30mm (1-1/4 inch) fine

30 x No.7/8 x 30mm (1-1/4 inch) coarse

10 x No.8 x 38mm (1-1/2 inch) coarse

10 x No.8 x 50mm (2 inch) coarse

10 x No.8 x 63mm (2-1/2 inch) coarse

1 x Face clamp

1 x HSS drill bit with collar

1 x 150mm Square drive bit

1 x 75mm Square drive bit

2 x Hex Key

1 x Dust Spout

Please do not hesitate to contact our in-house Woodwork machinist by live chat, for free of charge technical advice.

Note picture is for advert purposes only.
