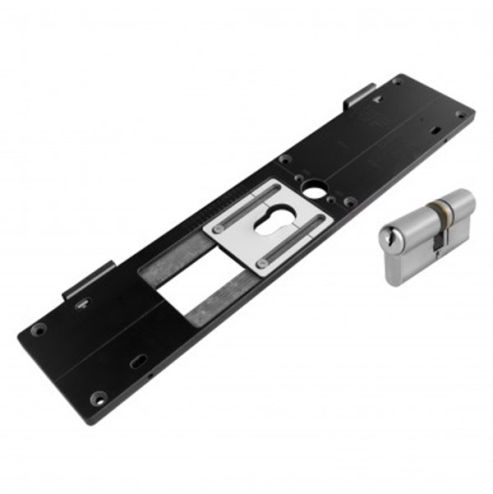

TREND EURO CYLINDER LOCK JIG

TREND EURO CYLINDER LOCK JIG

Trend Ref: ECL/JIG

A quick and easy routing jig to cut a hole for Euro Cylinder Lock barrels.

• Routs out recess to suit Euro lock cylinder barrel size 33mm x 17mm/10mm.
• Sliding plate allows handle pitch to lock body adjustment from 45mm to 115mm.
• 44mm and 57mm backset.
• Jig is designed to give a 1mm clearance around the barrel.
• Allows 16mm diameter hole for handle spindle to be routed.
• Holes for use with 2.75mm diameter Trend Snappy drill bit guide for marking handle lock plate at 40mm centres.
• Made from 12mm thick High Pressure Laminate for longer life.
• Long rotating edge stops for use with 44mm doors with leading edge.

Our in-house woodwork machinists with over 40 years of experience are on our live webchat for free of charge technical assistance if required.

Picture is for illustration purposes only and item(s) will be exactly as described.
