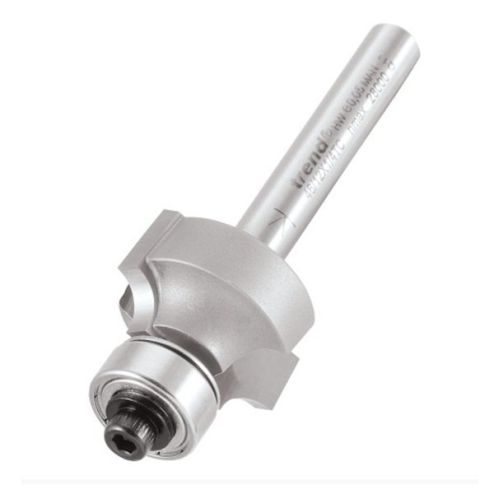

Trend Bearing Guided Ovolo 4.8mm Radius 22mm dia S=1/4"

Trend Bearing Guided Ovolo 4.8mm Radius 22mm dia S=1/4"

Trend Ref: 46/12X1/4TC

Self-guiding cutters for rounding over edges do not require a side-fence. They are supplied with two bearings. Use the larger bearing for a round over. If the cutter is lowered, a top quirk can be produced. Bullnose mouldings can also be produced by taking a second pass from the opposite side of the workpiece.

Technical Specification

Radius = 4.8mm

Diameter = 22mm

Cut = 1/2”

Shank = 1/4”

Bearing = 9.5mm

Bearing 2 = 12.7mm

Our in-house woodwork machinists with over 40 years of experience are on our live webchat for free of charge technical assistance if required.

Picture is for illustration purposes only and item(s) will be exactly as described.
