Kyocera Ø6mm x 22mm Cut Length Shank = 6mm Carbide Down Cut Finishing Spiral CNC Router Cutter
Kyocera Unimerco Part Code - 784304
 The tool sizes are as follows.
Cut Diameter = 6mm
Shank Diameter = 6mm
Cut Length = 22mm
Total Length = 65mm
Z=2 (2flute)
Chip Flow = Negative/Down cut
Â
This tool is a Z=2 (2 Flute) Neg/R (Negative spiral will give the best top layer cutting quality and can be used for clamping when small workpieces are used). Capable of feed rates from 5 to 10m/min (governed by timber + machine + extraction + item stability).
Used for Shaping, Grooving and panel sizing of solid wood, plastics and laminates.

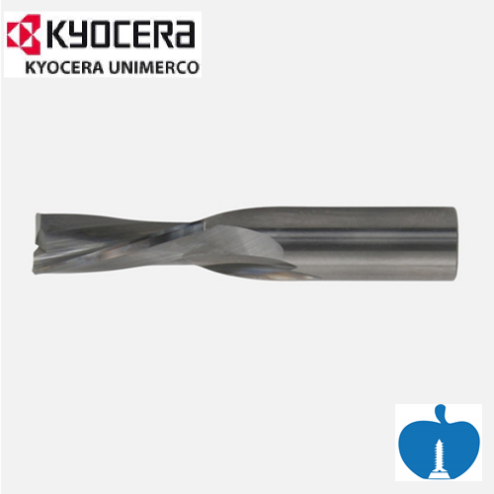

Picture for advert purposes and will be exactly as described.
| Price | 38.40 |
|---|---|
| Brand | Kyocera Unimerco |
| Diameter | 6mm |
| Cut Length | 20 - 29mm |
| Qty of Flutes | 2 Wing |
| Chip Flow | Negative (Down Cut) |
| Feed Rate | 6 - 12m/min |
| Rotation | Right Hand |
