Kyocera 20mm x 75mm S=20mm CNC Roughing Spiral Router 2 Flute Positive R/H 784420

Kyocera 20mm x 75mm S=20mm 2 Flute CNC Solid Carbide Roughing Spiral Router Positive Right Hand Rotation

Kyocera Unimerco Part Code - 784420

This quality CNC manufactured spiral has been made from the best quality grade solid carbide giving increased tool life manufactured in the UK by Kyocera UNIMERCO.

The tool geometry is designed from years of testing and in-house knowledge and is suitable for general joinery in all timbers - Softwood, Hardwood and Manufactured Board Materials.

 The Tool dimensions are:-

Diameter = 20mm

Shank = 20mm

Cut Length = 75mm

Total Length = 135mm

This tool is a Z=2 (2 Flute) Pos/ R (positive chip flow extracting the waste upwards towards the extraction hood) and is capable of feed rates from 6 to 12m/ min (governed by timber, machine, extraction & work piece stability).

Used for cutting, copying, panel-sizing and any routing applications on solid wood, wood composites, plastic materials and laminates. Use a high feed speed on well clamped workpieces. can be used on machining centres, point to point machines, CNC routers and hand held routers equipped with chucks or adapters.

Our in-house designers and commissioning engineers will be happy to provide Free Of Charge assistance to optimise your applications / parameters.

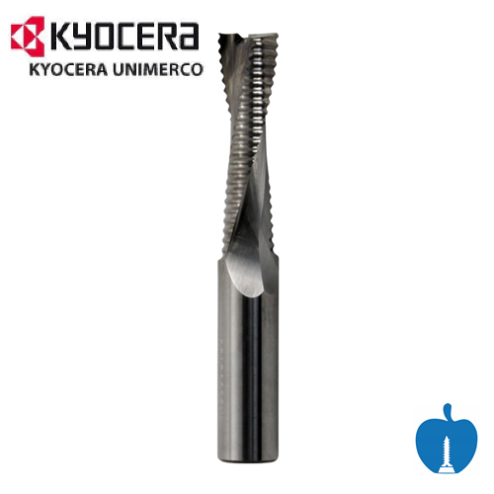

 Picture for advert purposes only and will be exactly as described.
