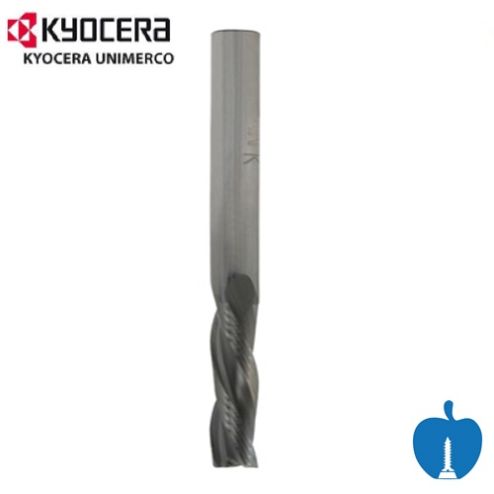

Kyocera Unimerco Ø16mm x 36mm Cut Length Shank = 16mm 3 Flute Carbide Positive Finishing Spiral CNC Router Cutter
Kyocera Part Code - W432HB0160-034
 The tool sizes are as follows.
Cut Diameter = 16mm
Shank Diameter = 6mm
Cut Length = 36mm
Total Length = 90mm
Z=3 (2flute)
Chip Flow = Positive / Upcut
Â
 This tool is a Z=3 ( Flute) Pos/R (Positive spiral will give the best top layer cutting quality and can be used for clamping when small workpieces are used). Capable of feed rates from 12 to 20m/min (governed by timber + machine + extraction + item stability).
Picture for advert purposes and will be exactly as described.
| Price | 140.40 |
|---|---|
| Brand | Kyocera Unimerco |
| Diameter | 16mm |
| Cut Length | 30 - 39mm |
| Qty of Flutes | 3 Wing |
| Chip Flow | Positive (Up Cut) |
| Feed Rate | 12 - 26m/min |
| Rotation | Right Hand |
