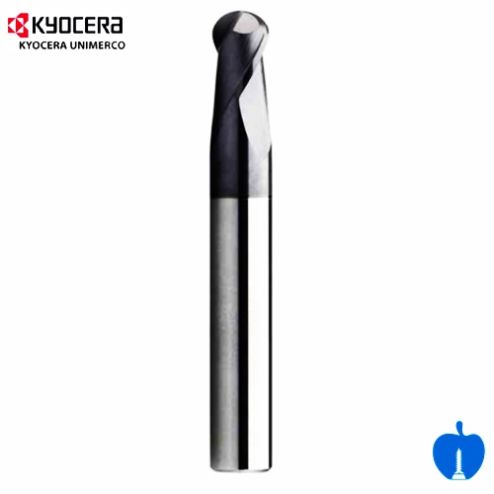

Kyocera 14mm dia x 30mm Cut Round Ball Nose Spiral Router 2 Flute UP-Cut R/H H923.1400

Kyocera Unimerco Ø14mm x 30mm Cut Length S=14mm Carbide Upcut Round Ball Nose Spiral 2 Flute R/H Rotation CNC Router Cutter

Unimerco Part Code H923.1400

 The tool sizes are as follows.

Cut Diameter = 14mm

Shank Diameter = 14mm

Cut Length = 30mm

Radius= 7mm

Total Length = 90mm

Z=2 (2 Flute)

Right Hand Rotation

Chip Flow = Positive/Upward chip ejection.

This quality CNC manufactured spiral has been made from the best quality grade solid carbide giving increased tool life, manufactured in the UK by Kyocera UNIMERCO

This tool is a Z=2 (2 Flute) Positive/R (positive chip flow extracting the waste upwards towards the extraction hoods) which will provide an excellent finish on the lower side of your workpiece and is capable of feed rates from 6 to 12m/min (governed by timber + machine + extraction + item stability).

B0819 Coating Suitable for medium and high speed,wet and dry machining and good for machining steel.

Can be used on machining centres, point to point boring machines, CNC routers and hand held routers equipped with chucks or adapters.

Our in house tool designer Jeremy Appleby will be happy to provide free of charge assistance to optimise your applications/parameters via Telephone, Whats App group chats, Zoom calls and Emails. Site visits available upon request.

Picture for advert purposes and will be exactly as described.
