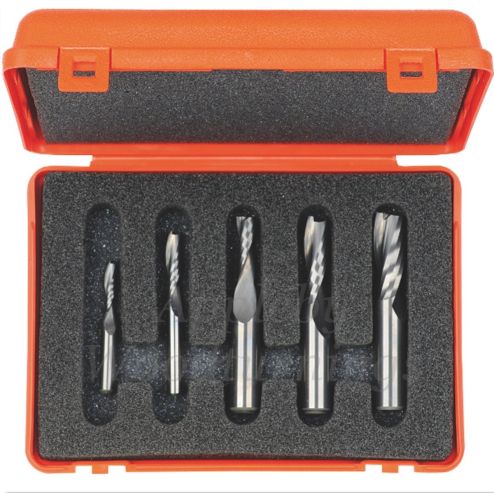

5 Piece CNC S=8mm Carbide Down-cut Finishing Spiral Router Cutter Set
CMT Part Code- 192.000.01
 The tool sizes included are :
4mm Dia x 15mm Cut
6mm Dia x 27mm Cut
8mm Dia x 32mm Cut
10mm Dia x 32mm Cut
12 Dia x 35 Cut
Shank Diameter (S) = 8mm
Z=2 (2 Flute)
Right Hand Rotation
Negative/Downward chip Flow
Â
  This tool is a Z=2 (2 Flute) Neg/R (Negative spiral will give the best top layer cutting quality and can be used for clamping when small workpieces are used). Capable of feed rates from 5 to 10m/min (governed by timber + machine + extraction + item stability).
Used for Shaping, Grooving and panel sizing of solid wood, plastics and laminates.
Our in-house CNC commissioning engineer Jeremy Appleby will be happy to provide free of charge assistance to optimise your applications/Parameters via Telephone, WhatsApp group chats, Zoom calls and E-mails. Site Visits available on request.
Picture for advert purposes and will be exactly as described.
| Price | 183.60 |
|---|---|
| Brand | CMT |
| Diameter | 5pc Set 4mm - 12mm |
| Cut Length | 15 - 32mm |
| Qty of Flutes | 2 Wing |
| Chip Flow | Negative (Down Cut) |
| Feed Rate | 5 - 10m/min |
| Rotation | Right Hand |
-
