CMT 16mm Dia x 55mm Cut Spy Hole Lockcase Spiral For 60° V-Point Locksets Z3 R/H 191.163.11

CMT Ø16mm x 55mm Cut Length Shank = 16mm Spy Hole Lockcase without chip breaker Carbide Positive Finishing Spiral CNC Router Cutter

CMT Part Code - 191.163.11

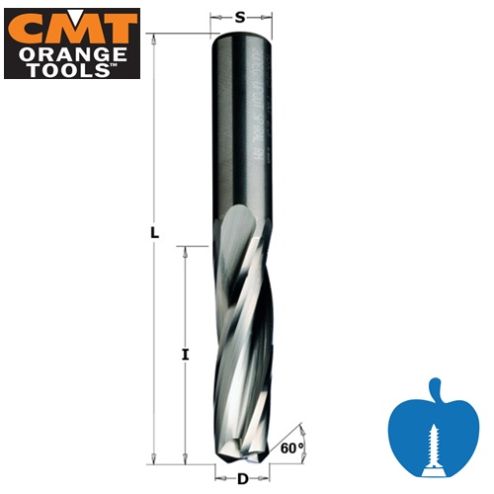

 The tool sizes are as follows.

Cut Diameter = 16mm

Shank Diameter = 16mm

Cut Length = 55mm

Total Length = 110mm

Z=3 (3 Flute)

Right Hand Rotation

Chip Flow = Positive/Upward chip ejection.

Will provide an excellent Finish on the lower side of workpiece.

This tool is a Z=3 (3 Flute) Positive/R (positive chip flow extracting the waste upwards towards the extraction hoods) and is capable of feed rates from 12 to 20m/min (governed by timber + machine + extraction + item stability)

Used for cutting, copying, panel sizing and any routing applications on solid wood, wood composites, plastic materials and laminates. Use a high feed spped on ell clamped workpieces. Can be used on machining centres,l point to point machines, CNC routers and hand held routers with chucks or adapters.

A Special super-micrograin carbide formulation was created to produce and hold a keen cutting edge. The new low-angle spiral is designed specifically to shear wood cleanly and provide efficient chip ejection. The tool runs cooler and the edges last longer.

Picture for advert purposes and will be exactly as described.
