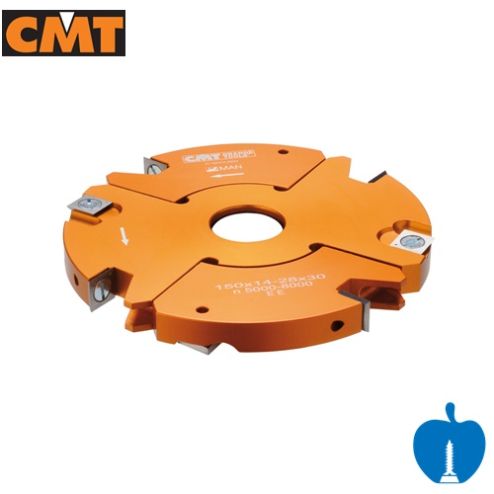

CMT 150mm Diameter x 14-28mm Cut Height 2 Piece Adjustable Groover with 31.75mm Bore

CMT PART CODE - 694.021.31

The ideal tool for use on Spindle Moulders, Double End Tennoners and Shaper machines to create precision slots and grooves between 14 to 28mm in a wide range of materials. Suitable for all materials, but best on Solid Woods (Hardwood & Softwood) Chipboard, MDF, Composites, Plastic Materials and Laminates.

Cutting Diameter = 150mm

Groove Width = 14-28mm

Internal Bore Size = 31.75mm

Maximum Groove/Rebate Depth = 44mm

8HWM Knives - 13.6X13.6X2

4HWM Knives - 19.5X12X1.5

4HWM Knives - 14X14X2

Hard Aluminum Alloy Body

Manual Feed

Pins for the Automatic Positioning of the Knives

RPM Min 5000-8000 Max

This versatile 150mm diameter Adjustable Groover set consists of two solid Aluminium cutter heads and a set of spacer shims. In addition, both of the heads come pre-fitted with Two cutting Tips and Two Spur Tips. These tips are the European standard sizes and can be turned four times to use each of their edges in order to achieve crisp, clean and precise edges.

Image is for illustration purposes and will be exactly as described.
