CMT 14mm x 125mm S=14mm CNC Lockcase Spiral With Chip-Breaker Positive Z3R R/H 195.144.11

CMT Ø14mm x 125mm Reach Shank=14mm Carbide CNC Lockcase Spiral Router with chip-breaker Z=3R Positive Right Hand Rotation

CMT Part Code - 195.144.11

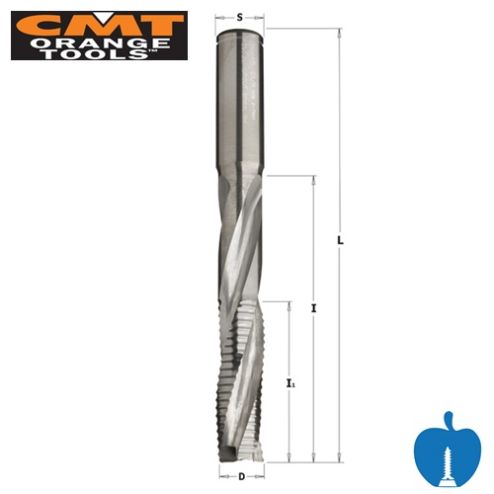

 The tool sizes are as follows:

Cut Diameter = 14mm

Shank Diameter = 14mm

Cut Length = 45mm

  Cut Depth Reach = 125mm

Total Length = 170mm

Z=3R (3 Flute)

Right Hand Rotation

Chip Flow = Positive/Upward chip ejection.

Chip-Breaker teeth

This tool is a Z=3R (3 Flute) Pos/R (positive chip flow extracting the waste upwards towards the extraction hoods) and is capable of feed rates from 12 to 26m/ min (governed by timber + machine + extraction + item stability).

Used for efficient contour cutting, end trimming and panelsizing on solid wood, wood composites, plastic materials and laminates at high feed speed. Ensure to properly clamp workpieces. Can be used on machining centres, point to point boring machines, CNC routers and hand held routers equipped with chucks or adapters.

A Special super-micrograin carbide formulation was created to produce and hold a keen cutting edge. The new low-angle spiral is designed specifically to shear wood cleanly and provide efficient chip ejection. The tool runs cooler and the edges last longer.

Our in-house CNC commissioning engineer Jeremy Appleby will be happy to provide Free Of Charge assistance to optimise your applications / parameters.

Picture for advert purposes only and will be exactly as described.
