CMT 140 x 4-15mm Id=31.75 3 Piece Adjustable Groover 694.001.31

3 piece CMT adjustable groover cutter head

Ref : 694.001.31

Ideal to create slots and grooves on material from 4-15mm deep

Cutting diameter 140mm
Internal bore size 31.75mm (1 1/4")
Complies to current hand fed machines (MAN) regulations for safe use on spindle moulders
Supplied with full set of carbide reversible knives
Solid steel body
12 spacer collar rings from 0.1 to 2mm
Locating pins for accurate positioning of the knives
Accurate groove width due to spur tips on top and bottom

 What our in house woodworking machinist says:-

  “ This Adjustable Groover is ideal for you to create both grooving and small rebates because of the spurs fitted to both heads. Down time on your machine is kept to a minimum because all of the cutting tips are reversible carbide knives which can be turned around 4 times whilst the head remains on your spindle by just removing the locating screw and rotating the tips. The reversible tips are made from carbide which means that they last a lot longer than normal HSS tips so you don't have to change them as often. Even when you need to change the tips for new ones, you can remove the head easily and quickly to put new tips on when edges become blunt or chipped.

 You can finely adjust the Groover easily with the assortment of spacer shims that are included in the set.

Another advantage to you is the quick set up time for doing tennons on the spindle, if there is no tennoner available, by simply separating the blocks, turning them upside down and putting the spacer shims in between them.

 The versatility of this block means it is a must for any woodworking machine shop”

Spares:

18 x 18 x 1.95mm reversible grooving knives (4 cutting edges)

14 x 14 x 1.2mm spur tips (4 cutting edges)

7.6 x 12 x 1.5mm reversible knives (2 cutting edges)

   You will find all spare parts for this block in the reversible turn blade category of our shop

You can also purchase new tips or spare screws for this block from our store at very competitive prices which means that you can run and maintain your block for pennies

Please do not hesitate to contact our in house, Woodwork Machinest for Free Of Charge Technical advice.

Thanks for looking and we hope to see you as a repeat customer of the future.

All prices include Vat and a full Vat receipt will be sent with every purchase.

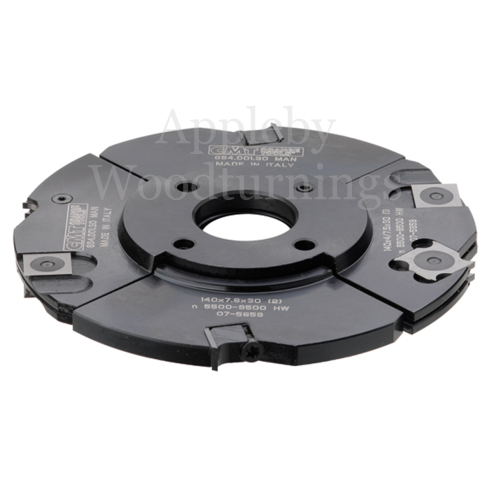

Note picture is for advert purposes only
