CMT Ø10mm x 32mm Cut Length Shank = 12mm Carbide Down Cut Finishing Spiral CNC Router Cutter
CMT Part Code - 192.900.11

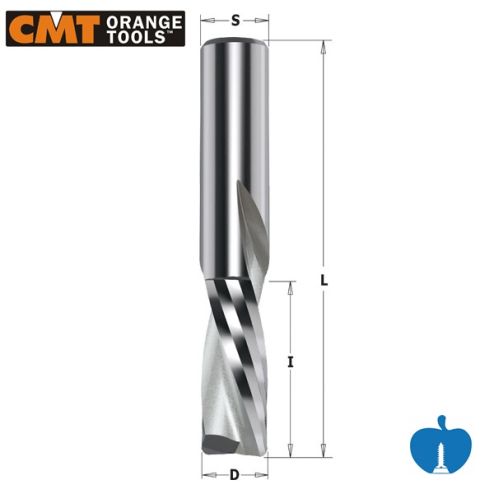

 The tool sizes are as follows.
Cut Diameter = 10mm
Shank Diameter = 12mm
Cut Length =Â 32mm
Total Length = 83mm
Z=2 (2flute)
Chip Flow = Negative/Down cut
Â
 This tool is a Z=2 (2 Flute) Neg/R (Negative spiral will give the best top layer cutting quality and can be used for clamping when small workpieces are used). Capable of feed rates from 5 to 10m/min (governed by timber + machine + extraction + item stability).
Used for Shaping, Grooving and panel sizing of solid wood, plastics and laminates.
Our in-house CNC commissioning engineer Jeremy Appleby will be happy to provide free of charge assistance to optimise your applications/Parameters via Telephone, WhatsApp group chats, Zoom calls and E-mails. Site Visits available on request.
Picture for advert purposes and will be exactly as described.
| Price | 50.40 |
|---|---|
| Brand | CMT |
| Diameter | 10mm |
| Cut Length | 30 - 39mm |
| Qty of Flutes | 2 Wing |
| Chip Flow | Negative (Down Cut) |
| Feed Rate | 5 - 10m/min |
| Rotation | Right Hand |
-
