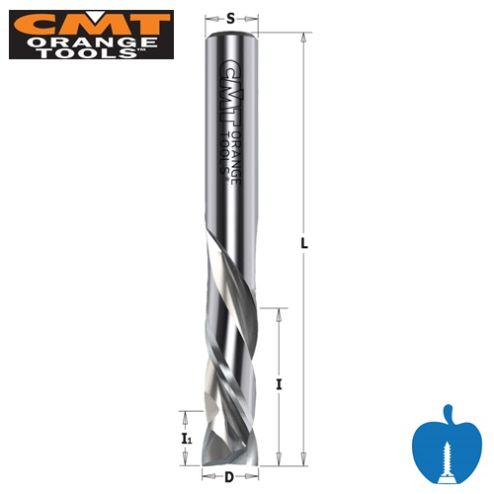

Ø9.52mm x 22.2mm Cut Length Solid Carbide CNC Up/Downcut Compression Spiral Router Mortising Bit Right Hand Rotation Z=2+2 Made by CMT

CMT Part Code - 190.513.11

Diameter = 9.52mm

Cut Length = 22.2mm

Shank Diameter = 9.52mm

Overall Length = 76mm

Cutting Direction = Right

Cutting Edges = Z=2+2

This Tool will provide efficient chip ejection and an excellent finish on both the upper and lower side of the Workpiece.

Used for cutting, copying, panel-sizing and any routing application on solid wood, wooden composites, plastic materials and laminates. Use a high feed speed on well clamped workpieces. Can be used on machining centres, point to point boring machines, CNC routers and hand held routers equipped with chucks or adapters.

Image Is For Illustration Purposes Only
