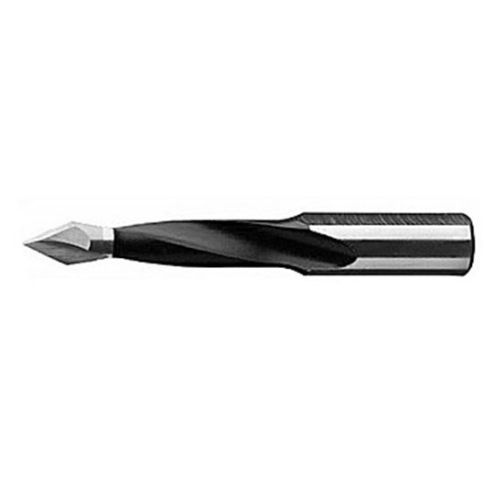

8mm x 70mm x 115mm Through Point Dowel Drill Bit R/H CMT

8mm x 70mm x 115mm Through Point Dowel Drill Bit R/H

For the use of drilling through-holes in solid wood and panel materials.

For stationary boring machines, automatic boring machines and CNC machining centres.

This quality CNC manufactured drill bit has been made from the best quality grade solid carbide giving increased tool life.

The tool geometry is designed from years of testing and and is suitable for general joinery in all timbers and manufactured board materials.

Tool Dimensions:-

 Diameter= 8mm

Depth Of Cut = 70mm

Total Length = 115mm

Shank diameter = 10mm

Shank Length = 30mm

Technical Details:-

 Super-Strength Steel

Cutter portion coated with black (Right Hand) or orange/red (Left Hand) P.T.F.E

Carbide (HW) head with precision balanced centre point

2 Carbide (HW) precision ground cutting edges [Z2]

Our in-house designers and commissioning engineers will be happy to provide Free Of Charge assistance to optimise your applications / parameters.

Pictures shown are for advert purposes only and may not show correct diameter and length. Item will be described as above and supplied in a plastic packaging container for safe transportation.
