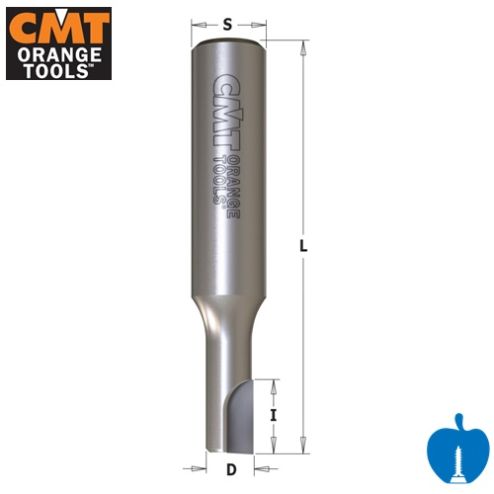

CMT 8mm Diameter x 12mm Cut Length CNC PCD Diamond Router Straight Bit With Shear Angle Z=1 Right Hand Rotation

CMT Part Code = 141.080.61

Diameter = 8mm

Cut Length = 12mm

Overall Length = 65mm

Shank Diameter = 12mm

Shank Length = 40mm

Cutting Edges = Z=1

Cutting Rotation = Right Hand

Shear Angle

Max Feed Speed = 4m/min

 Can be used on machining centres, point to point boring machines and CNC's equipped with chucks or adapters.

Diamond Pointed cutting edge consists of 2.5mm deep Diamond segment.

Can be resharpened several times which leads economic efficiency and cost savings.

Image Is For Illustration Purposes Only
