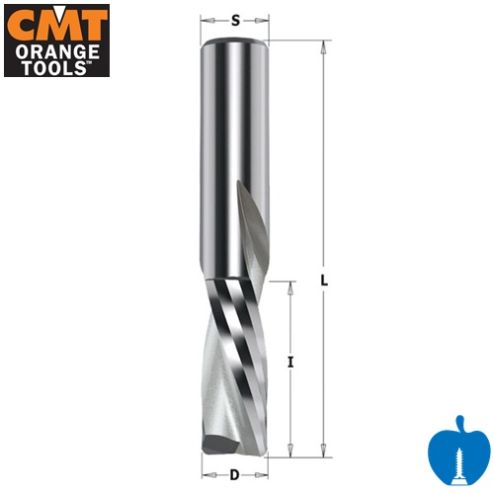

5mm Diameter x 17mm Cut Length CNC Carbide Negative Downcut Finishing Spiral With 8mm Shank 2 Flute Right Hand Rotation Made By CMT

CMT PART CODE = 192.850.11

Diameter = 5mm

Cut length = 17mm

Overall Length = 60mm

Shank Diameter = 8mm

Chip Flow = Negative/Downward Chip Ejection

Cutting Rotation = Right Hand

Material = Solid Carbide

Flutes = Z=2

This Finishing Spiral Router by CMT is a Z=2 (2Flute) Negative Downcut (negative chip flow extracting waste downwards) and is capable of feed rates from 5 to 10 m/min (governed by Timber, Machines, extraction units and item stability). Negative Spiral will give the best top layer cutting quality and provide an excellent finish on the upper side of the workpiece.

Used for cutting, copying, panel sizing and any routing applications of Solid Wood, Wooden Composites, Plastics and Laminates. Can be used on machining centres, point to point machines, CNC Routers and Hand Held Routers equipped with chucks or adapters.

Image Is For Illustration Purposes Only And Will Be As Described.
