50mm dia x 38mm cut CNC PCD Diamond Spiral Router With 40° Shear Angle Z=4+4 S=25mm R/H CMT

CMT 50mm dia x 38mm cut CNC PCD Diamond Spiral Router With 40° Shear Angle Z=4+4 S=25mm Right Hand Rotation

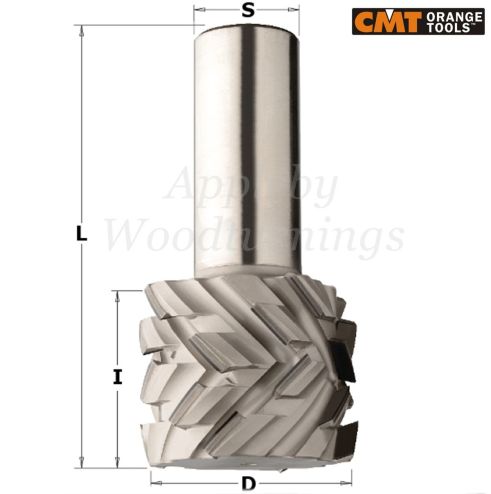

The tool sizes are as follows:-

Cut Diameter (D) = 50mm

 Shank Diameter (S) = 25 x 55mm

  Cut Length (I) = 38mm

Total Length (L) = 95mm

Z = 4+4

40° Shear Angle

Max. Feed Rate = 30m/min

40 times longer life than carbide

Used for grooving, jointing, rebating or copying and dividing raw material.

These tools are designed to give optimum cutting quality due to the huge shear angles of each tip segment alternating up and down along the cutting edge.

They can be resharpened maximum 8-10 times which leads to economic efficiency and further cost savings.

-----------

We stock a wide range of these cutters in Z=1+1, Z=2+2 and Z=3 Turbo in all diameters and cut lengths.

Our in-house CNC commissioning engineer Jeremy Appleby will be happy to provide Free Of Charge assistance to optimise your applications / parameters.
