5.2mm Diameter x 44mm Cut Length 77mm Overall Length 2 Flute Lip & Spur Dowel Drill Bit Left Hand Rotation Unimerco Kyocera
Unimerco Kyocera Part Code - 181369
Diameter = 5.2mm
Cut Depth = 44mm
Total Length = 77mm
Shank Diameter = 10mm
Shank Length = 27mm
Cutting Direction = Left
Super Strength steel, Carbide Tipped
Â
Precision balanced centre point
Â
2 Precision ground cutting edges (Z2)
Â
2 Negativley ground spurs (V2)
Â
2 spiral flutes
Â
Parallel shank with driving flat and length adjusting screw.
This Lip and Spur drill bit is for stationary boring machines and automatic boring machines equipped with adapters or chucks and CNC machining centres.Â
Used to drill blind holes in solid wood, wood composites, plastics and laminated materials. Will help clear chippings when drilling deep holes.

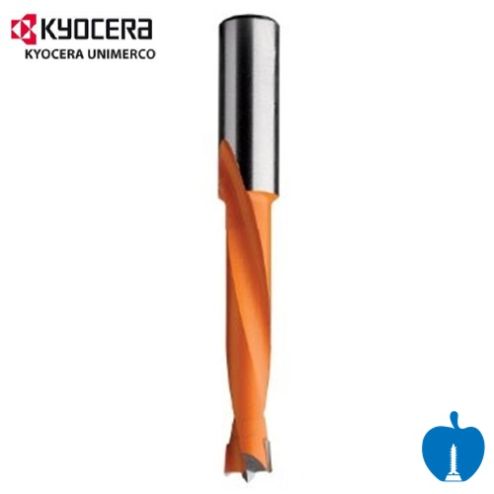

Image Is For Illustration Purposes Only.
| Price | 16.68 |
|---|---|
| Brand | Kyocera Unimerco |
| Drill Type | Lip and Spur |
| Drill Diameter | 5.2mm |
| Rotation | Left Hand (L/H) |
| Drill Total Length | 77mm |
| Shank Diameter | 10mm |
| Max Drilling Depth | 44mm |
