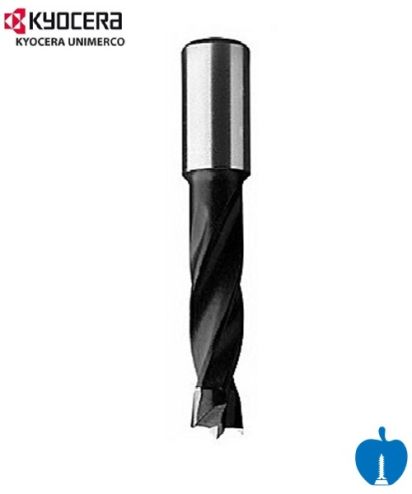

4mm Diameter x 35mm Cut Length 70mm Overall Length 2 Flute Lip & Spur Dowel Drill Bit Right Hand Rotation Unimerco Kyocera
Unimerco Kyocera Part Code - 181342S
Diameter = 4mm
Cut Depth = 35mm
Total Length = 70mm
Shank Diameter = 10mm
Shank Length = 25mm
Cutting Direction = Right
Super Strength steel, Carbide Tipped
Â
Precision balanced centre point
Â
2 Precision ground cutting edges (Z2)
Â
2 Negativley ground spurs (V2)
Â
2 spiral flutes
Â
Parallel shank with driving flat and length adjusting screw.
This Lip and Spur drill bit is for stationary boring machines and automatic boring machines equipped with adapters or chucks and CNC machining centres.Â
Used to drill blind holes in solid wood, wood composites, plastics and laminated materials. Will help clear chippings when drilling deep holes.
Image Is For Illustration Purposes Only.
| Price | 8.04 |
|---|---|
| Brand | Kyocera Unimerco |
| Drill Type | Lip and Spur |
| Drill Diameter | 4mm |
| Rotation | Right Hand (R/H) |
| Drill Total Length | 70mm |
| Shank Diameter | 10mm |
| Max Drilling Depth | 35mm |
