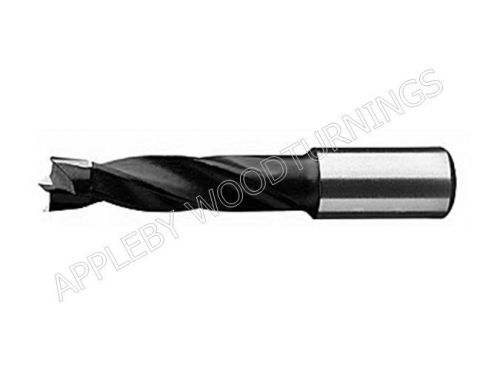

4.5mm x 57mm Right Hand Lip & Spur Dowel Drill Bit
This Lip & Spur drill bit is for use on stationary boring machines and automatic boring machines equipped with adapters or chucks and CNC machining centres.
Used to drill blind holes in solid wood, wood composites, plastics and laminated materials.
Dimensions:
Depth of Cut (I) 27mm
Total length (L) 57mm
Diameter (D) 4.5mm
Shank Length 27mm
Shank Diameter 10mm
Technical Details:
Super-strength Steel
Cutter portion coated with black (RIght Hand) or orange/red (Left Hand) P.T.F.E.
Carbide (HW) head with precision balanced centre point
2 Carbide (HW) precision ground cutting edges [Z2]
2 Negatively ground spurs assisting free flow of chips away from the cutting edge [V2]
2 spiral flutes
Parallel shank with driving flat and length adjusting screw
Our in-house woodwork machinists are at the end of the telephone for free of charge technical assistance if required with 40+ years experience.
Image is for illustration purposes only.
| Price | 12.30 |
|---|---|
| Brand | Kyocera Unimerco |
| Drill Type | Lip and Spur |
| Drill Diameter | 4.5mm |
| Rotation | Right Hand (R/H) |
| Drill Total Length | 57mm |
| Shank Diameter | 10mm |
| Max Drilling Depth | 27mm |
