CMT Ø3.2mm x 12.7mm Cut Length With 6.35mm Shank CNC Round Ball Nose Spiral Router 2 Flute Positive 1.6mm Radius R/H Rotation

CMT PART CODE = 199.001.11

Diameter = 3.2mm

Cut Length = 1/2" (12.7mm)

Overall Length = 50.8mm

Radius = 1.6mm

Shank Diameter = 1/4" (6.35mm)

Cutting Edges = Z2

Tool Material = Solid Carbide

Chip Flow = Positive/upward chip ejection

Right Hand Rotation

This tool is a Z=2 (2 Flute) Positive/R (positive chip flow extracting the waste upwards towards the extraction hoods) which will provide an excellent finish on the lower side of your workpiece and is capable of feed rates from 6 to 12m/min (governed by timber + machine + extraction + item stability).

Used for efficient contour cuting, end trimming and panel sizing of solid wood, plastics and laminates.

Can be used on machining centres, point to point boring machines, CNC routers and hand held routers equipped with chucks or adapters.

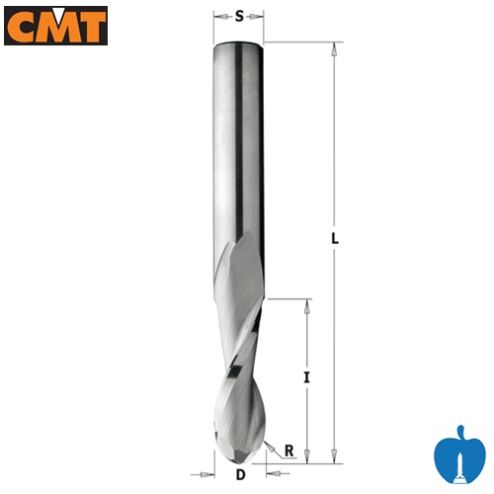

Image Is For Illustration Purposes Only
