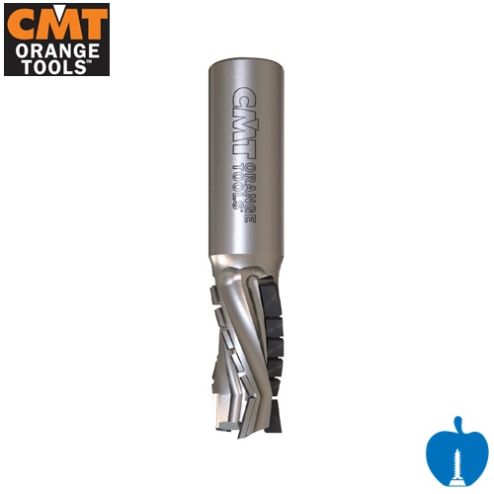

CMT 22mm Diameter x 35mm Cut Length CNC PCD Diamond Up/Down Compression Spiral Router With Shear Angle Z=3+3 Right Hand Rotation

CMT Part Code = 143.221.61

Diameter = 22mm

Cut Length = 35mm

Overall Length = 97mm

Shank Diameter = 25mm

Shank Length = 50mm

Cutting Edges = Z=3+3 (15DP + 1HW)

Cutting Rotation = Right Hand

Shear Angle

40x Longer Life Than Carbide

Used for Grooving, Jointing, Rebating or general sizing of Chipboard and MDF either raw laminated or veneered. Can be used on machining centres, point to point boring machines and CNC's equipped with chucks or adapters.

Designed to give optimum cutting quality due to the shear angles of each tip segment alternating up and down along the cutting edge.

Can be resharpened several times which leads economic efficiency and cost savings.

Image Is For Illustration Purposes Only
