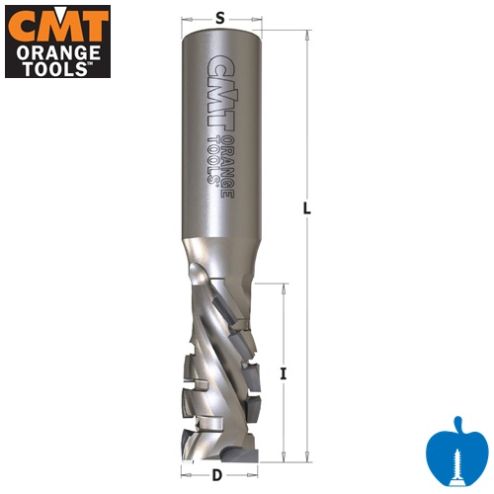

CMT 20mm Diameter x 35mm Cut Length CNC PCD Diamond Router With 45° Shear Angle Z=1+1 Right Hand Rotation

CMT Part Code = 140.721.61

Diameter = 20mm

Cut Length = 35mm

Overall Length = 95mm

Shank Diameter = 20mm

Shank Length = 50mm

Cutting Edges = Z=1+1 (6DP+1HW)

Cutting Rotation = Right Hand

45° Shear Angle

Max Feed Speed = 5m/min

 Can be used on machining centres, point to point boring machines and CNC's equipped with chucks or adapters.

Suitable for Jointing, Rebating, Grooving and copying across various materials such as Raw Wood, Melamine, Laminates, MDF, HPL and Veneered Panels

Versatile Plunging Tip: The HW plunging tip allows for efficient plunge cutting, enhancing the tool's functionality.

Diamond Pointed cutting edge consists of 2.5mm deep Diamond segment.

Superior Strength and Durability: Crafted from super strength steel, ensuring longevity and consistent performance.

High Resharpening Capacity: The cutter can be resharpened up to 8-9 times, significantly extending its lifespan and maintaining high performance.

Image Is For Illustration Purposes Only
