20mm dia x 75mm cut CNC S=20mm Ball Nose Up Cut Spiral Router 2 Flute R/H Kyocera

20mm dia x 75mm cut CNC S=20mm Ball Nose Up Cut Spiral Router 2 Flute R/H Kyocera

This quality CNC manufactured spiral has been made from the best quality grade solid carbide and coated to prolong tool life. Manufactured in the UK by Kyocera UNIMERCO.

The tool geometry has been designed from years of testing and in-house knowledge and is suitable for general joinery in all timbers - Softwood, Hardwood and Manufactured Board Materials.

The tool sizes are as follows:-

Cut Diameter (D) = 20mm

Shank Diameter (S) = 20mm

Cut Length (I) = 75mm

Radius (R) = 10mm

Z = 2

Right Hand Rotation

This tool is a Z=2 (2 Flute) Pos/ R (positive chip flow extracting the waste upwards towards the extraction hood) and is capable of feed rates from 6 to 12m/ min (governed by timber, machine, extraction and work piece stability).

We offer a full range of Spiral routers for almost every application. Our standard program ranges in size from 6-25mm with various cut lengths depending on diameter.

Most sizes are available in positive and negative, Left Hand and Right Hand rotation, 2 flute or 3 flute designs along with full custom tools on special request.

Please do not hesitate to contact our in-house Sales Team via live web-chat for Free of Charge Technical Advice.

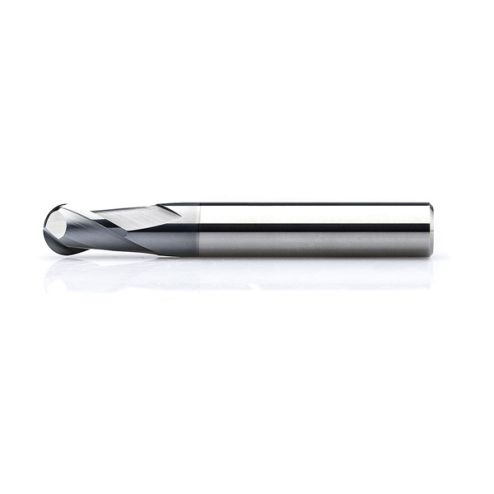

Note product image is for illustration purposes only.
