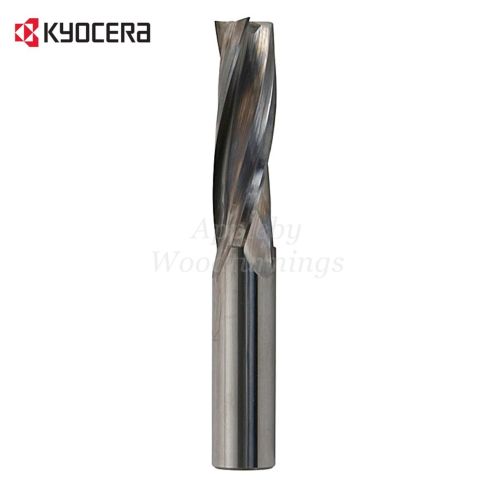

Kyocera Unimerco 20mm dia x 55mm cut CNC S=20mm Finishing Spiral Router Z=3 Up-cut Right Hand Rotation
This quality CNC manufactured spiral has been made from the best quality grade solid carbide giving increased tool life. Manufactured in the UK by Kyocera UNIMERCO.
The tool geometry has been designed from years of testing and in-house knowledge and is suitable for general joinery in all timbers - Softwood, Hardwood and Manufactured Board Materials
The Tool dimensions are:-
Diameter (D) = 20mm
Cut Length (I) = 55mm
Total Length (L) = 110mm
Shank Diameter (S) = 20mm
Z = 3 (3 Flute)
Positive Chip Flow (Up-cut)
Right Hand Rotation
This tool is a Z=3 (3 Flute) Pos/ R (positive chip flow extracting the waste upwards towards the extraction hood) and has been designed for feed rates from 12m - 26m/min on CNC Routers (governed by timber, machine, extraction & work piece stability).
We offer a full range of Spiral routers for almost every application. Our standard program ranges in size from 6-25mm with various cut lengths depending on diameter.
Most sizes are available in positive and negative, Left Hand and Right Hand rotation, 2 flute or 3 flute designs along with full custom tools on special request.
------------------
Our in-house CNC commissioning engineer Jeremy Appleby will be happy to provide Free Of Charge assistance to optimise your applications / parameters.
NB- Pictures shown are for advert purposes only and may not show correct diameter and length.
Item will be exactly as described above and supplied in a plastic packaging container for safe transportation.
| Price | 224.40 |
|---|---|
| Brand | Kyocera Unimerco |
| Diameter | 20mm |
| Cut Length | 50 - 59mm |
| Qty of Flutes | 3 Wing |
| Chip Flow | Positive (Up Cut) |
| Feed Rate | 12 - 26m/min |
| Rotation | Right Hand |
