20mm dia x 45mm cut CNC S=20mm Up / Down Compression Spiral Z=2+2 R/H Kyocera

Kyocera Unimerco 20mm dia x 45mm cut Solid Carbide CNC Up / Down Compression Spiral Router Z=2+2 Right Hand Rotation

Particularly suitable for double sided Veneers, Melamine, Chipboard & MDF material for a clean finish.

This quality CNC manufactured spiral has been made from the best quality grade solid carbide giving increased tool life.

The tool geometry is designed from years of testing and in-house knowledge and is suitable for general joinery in all timbers - Softwood, Hardwood and Manufactured Board Materials.

Tool Dimensions:-

Diameter (D) = 20mm

Cut Length (I) = 45mm

Total Length (L) = 110mm

Shank Diameter (S) = 20mm

The bottom of the bit is the upcut and the other end is downcut compressing the material into the centre of the bit protecting the top and bottom layers of the work piece.

We offer a full range of Spiral routers for almost every application.

Our standard program ranges in size from 6-25mm with various cut lengths depending on diameter.

Most sizes are available in positive and negative, Left Hand and Right Hand rotation, 2 flute or 3 flute designs along with full custom tools on special request.

------------------------

Our in-house CNC commissioning engineer Jeremy Appleby will be happy to provide Free Of Charge assistance to optimise your applications / parameters.

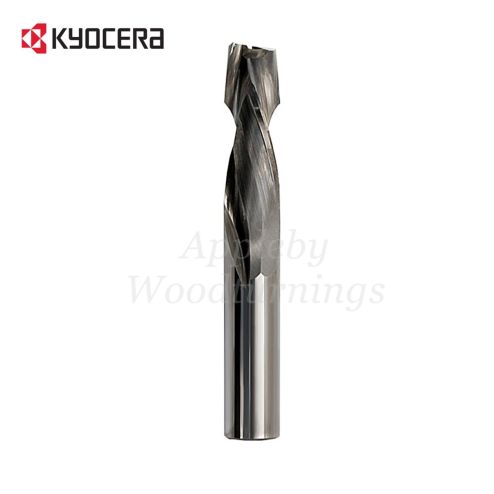

NB- Pictures shown are for advert purposes only and may not show correct diameter and length.

Item will be exactly as described above and supplied in a plastic packaging container for safe transportation.
