20mm dia x 36mm cut CNC PCD Diamond Router Z=2+2 S=20 with 2.5mm Tip Depth R/H Kyocera

Kyocera Unimerco 20mm dia x 36mm cut CNC PCD Diamond Router Z=2+2 S=20 Up/Down Compression Right Hand Rotation

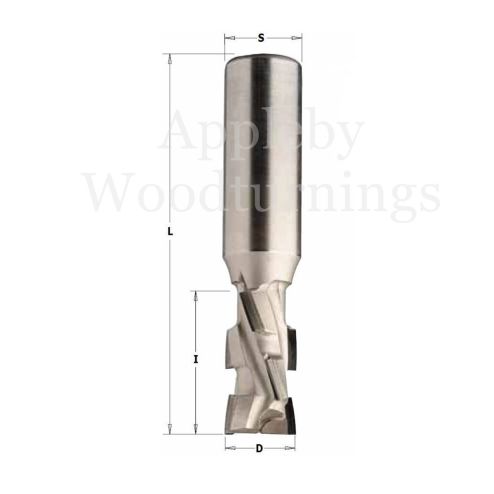

The tool sizes are as follows:-

Cut Diameter (D) = 20mm

 Shank Diameter (S) = 20mm

  Cut Length (I) = 36mm

Tip Depth = 2.5mm

Z = 2+2

Used for grooving,  jointing, rebating, or general sizing of chipboard and MDF-board either raw laminated or veneered.

These tools are designed to give optimum cutting quality due to the huge shear angles of each tip segment alternating up and down along the cutting edge.

They can be resharpened several times which leads to economic efficiency and further cost savings.

-----------

We stock a wide range of these cutters in Z=1+1, Z=2+2 and Z=3 Turbo in all diameters and cut lengths.

Our in-house CNC commissioning engineer Jeremy Appleby will be happy to provide Free Of Charge assistance to optimise your applications / parameters.
