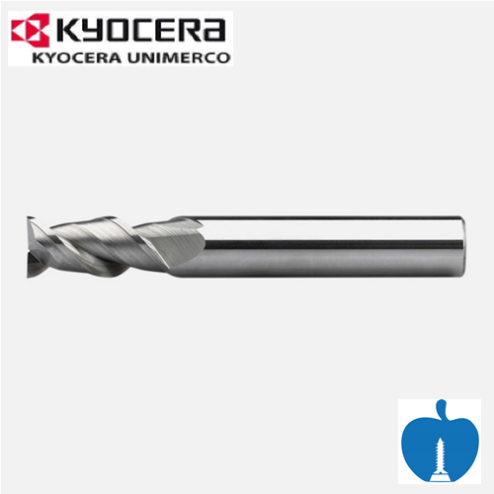

1mm dia x 3mm cut CNC Finishing Spiral Router 2 Flute Positive RH Kyocera

1mm diameter x 3mm cut length 2 Flute CNC Solid Carbide Finishing Spiral Positive Right Hand Rotation

Unimerco Part Code - H301.0100-03

This quality CNC manufactured spiral has been made from the best quality grade solid carbide giving increased tool life manufactured in the UK by Kyocera UNIMERCO.

The tool geometry is designed from years of testing and in-house knowledge and is suitable for general joinery in all timbers - Softwood, Hardwood and Manufactured Board Materials.

The tool sizes are as follows.

Diameter = 1mm

Cut Length = 3mm

Shank Length = 3mm

Total Length = 40mm

Z=2 (2 Flute)

Right Hand Rotation

Chip Flow = Positive/Upward Chip Ejection

This tool is a Z=2 (2 Flute) Pos/ R (positive chip flow extracting the waste upwards towards the extraction hood) and is capable of feed rates from 6 to 12m/ min (governed by timber, machine, extraction & work piece stability).
