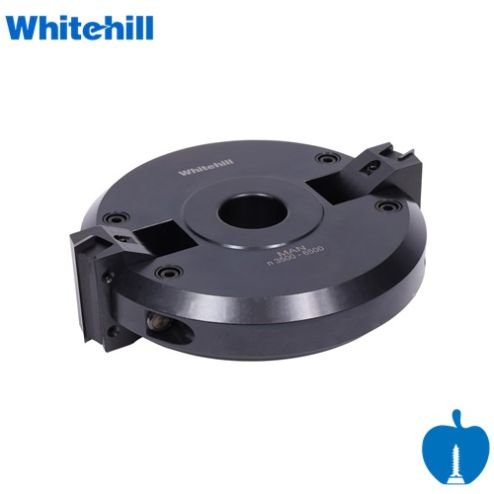

170mm x 50mm Cut Height Whitehill Spindle Moulder Vari Angle Cutter Head with 31.75mm Bore

Name: 170mm x 50mm Cut Height Whitehill Spindle Moulder Vari Angle Cutter Head with 31.75mm Bore
Brand: Whitehill
SKU: BLVARI1705031WH
Price: 357.6 GBP
Availability: OutOfStock

£357.60 £298.00

On request

SKU

BLVARI1705031WH

170mm x 50mm Cut Height Whitehill Vari Angle Cutter Head with 31.75mm Bore 250S00070

Qty

Reliable, Speedy Delivery & 14 day returns read more

Join Our Rewards Scheme Start Saving Today

Description

Whitehill 170mm x 50mm Cut Height Vari Angle Cutter Head with 31.75mm Bore For Spindle Moulder Machines

Whitehill Ref - 250S00070

170 x 50 x 31.75mm Vari Angle Head. Cutter head design for chamfering in various angles. Digital protractor supplied with tooling for precise (0.1 deg) setting. Fitted with standard TC Reversible Blades. Swivel jaw adjustable on both sides from -90 to +90 deg. Tool body in steel, suitable for Spindle Moulders with manual feed.

Specifications

Diameter = 170mm

Cut Height - 50mm

Internal Bore = 31.75mm

Max Cutting Diameter = 195mm

Groove Size = 90mm

RPM Min 3500 - 6500 Max

Suitable for MDF = Yes

Image is for illustration purposes only.
