16mm Diameter x 55mm Cut Depth 120mm Overall Length CNC Roughing Spiral Router 3 Flute Positive Right Hand Rotation

Kyocera Unimerco Part Code - W432HA0160-036

Tool Dimensions ;

Diameter = 16mm

Cut Depth = 55mm

Overall Tool Length = 120mm

Shank Diameter = 16mm

Shank Length = 40mm

Chip Flow = Positive Upcut

Cutting Edges = 3 Flute (Z3)

Cutting Direction = Right

This quality CNC manufactured Spiral has been made from the best quality grade Solid Carbide giving increased tool life.

The Tool geometry has been designed from years of testing and in-house knowledge and is suitable for general joinery in all timbers - Softwood, Hardwood, and manufactured board materials.

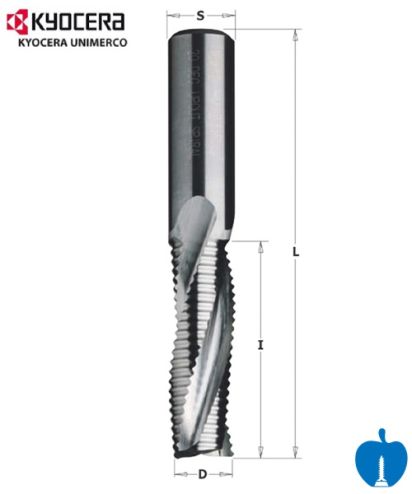

Image Is For Illustration Purposes Only
