Kyocera Unimerco 14mm dia x 105mm reach CNC S=14mm Z=3 Positive Lockcase Spiral Router

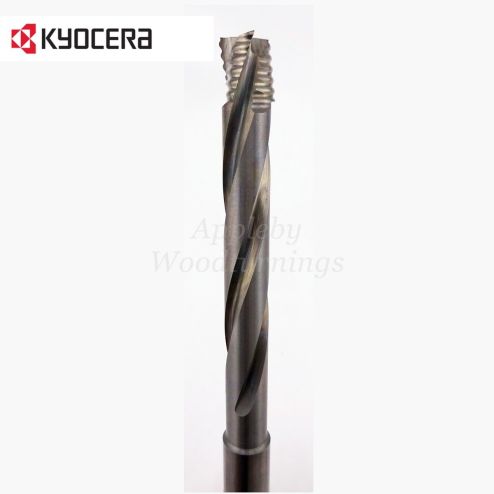

CNC Solid Carbide Lockcase Spiral Router Cutter
This quality CNC spiral has been manufactured by Kyocera Unimerco from the best quality micro grain carbide increasing tool life and performance.
The tool geometry is designed for use in CNC machines for cutting lock sets and face plates in doors.
The Tool dimensions are:-
Diameter (D) = 14mm
Cut length (I1) = 15mm
Depth Reach (I) = 105mm
Total Length (L) = 175mm
Shank Diameter (S) = 14mm
Positive Chip Flow (Up-cut)
Z = 3 (3 Flute)
Right Hand Rotation
This tool is a Z=3 (3 Flute) Pos/R (positive chip flow extracting the waste upwards towards the extraction unit).
We offer a full range of Spiral routers for almost every application.
Our standard program ranges in size from 6-25mm with various cut lengths depending on diameter.
Most sizes are available in positive and negative, Left Hand and Right Hand rotation, 2 flute or 3 flute designs along with full custom tools on special request.
-----------------------
Our in-house CNC commissioning engineer Jeremy Appleby will be happy to provide Free Of Charge assistance to optimise your applications / parameters.
NB- Pictures shown are for advert purposes only and may not show correct diameter and length.
Item will be exactly as described above and supplied in a plastic packaging container for safe transportation.
Price | 225.60 |
---|---|
Brand | Kyocera Unimerco |
Diameter | 14mm |
Cut Length | 76 - 110mm |
Qty of Flutes | 3 Wing |
Chip Flow | Positive (Up Cut) |
Feed Rate | 12 - 26m/min |
Rotation | Right Hand |
