142mm Diameter x 12mm in Height Whitehill 21 Seal Head With 30mm Bore

Whitehill Part Code = 270S00020

Tool specifications:

Diameter = 142mm

Cut Height = 12mm

Internal Bore = 30mm

Product Material = Steel

Tungsten Carbide Tipped

Number of Cutters = 2 (Z2)

Number Of Spurs = 4 (V2+2)

RPM = MIN 4500 - 8000 MAX

 TC tipped 21 tool is designed to cut a slot groove to fit 21 seal into rebate of door or window frame. Specific tool diameter allows this tool to run in conjunction with 125 diameter rebate head to cut rebate and groove in one pass. 2.7mm Grooving slots are machined on both sides of the tool so it can be mounted both on top and underneath of the rebate head. Cutterhead fitted with TC reversible main blades, 2.7mm grooving tips and 14mm spurs on top and on the bottom. Tool body in steel.

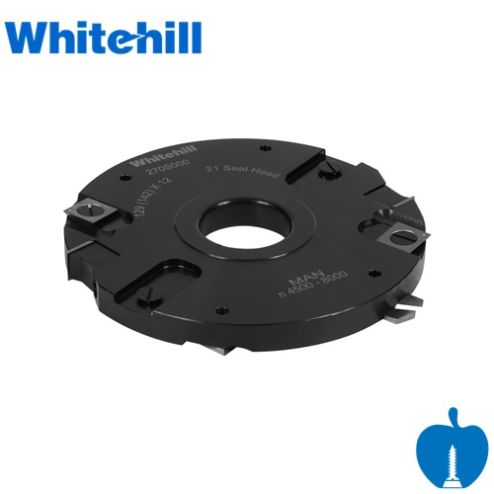

Image is for Illustration Purposes Only
