12mm x 57mm Lip & Spur Dowel Drill Bit R/H Kyocera Unimerco

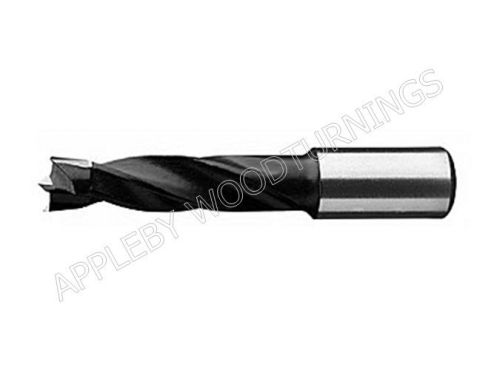

12mm x 57mm Right Hand Lip & Spur Dowel Drill Bit

This Lip & Spur drill bit is for use on stationary boring machines and automatic boring machines equipped with adapters or chucks and CNC machining centres.

Used to drill blind holes in solid wood, wood composites, plastics and laminated materials.

Dimensions:

Depth of Cut (I) 27mm

Total length (L) 57mm

Diameter (D) 12mm

Shank Length 25mm

Shank Diameter 10mm

Technical Details:

Super-strength Steel

Cutter portion coated with black (RIght Hand) or orange/red (Left Hand) P.T.F.E.

Carbide (HW) head with precision balanced centre point

2 Carbide (HW) precision ground cutting edges [Z2]

2 Negatively ground spurs assisting free flow of chips away from the cutting edge [V2]

2 spiral flutes

Parallel shank with driving flat and length adjusting screw

Our in-house woodwork machinists are at the end of the telephone for free of charge technical assistance if required with 40+ years experience.

Image is for illustration purposes only.
