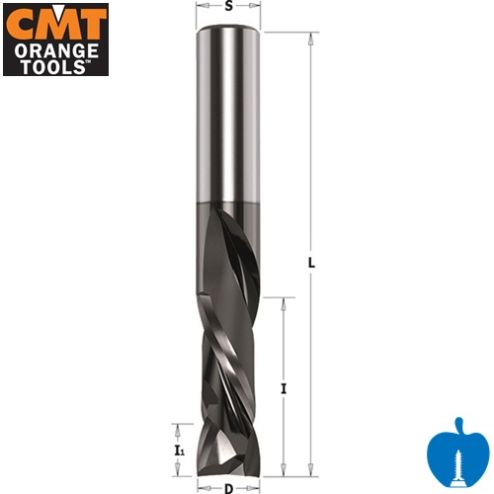

Ø12mm x 42mm Cut Length Solid Carbide CNC Up/Downcut Compression Spiral Router With DLCS CHROME COATING FOR LONG LIFE

CMT Part Code - 190.120.41

DLCS Chrome Coating For Long Life

Diameter = 12mm

Cut Length = 42mm

Shank Diameter = 12mm

Overall Length = 90mm

UpCut Height = 7mm

Cutting Direction = Right

Cutting Edges = Z=2+2

Solid Carbide

This Tool will provide efficient chip ejection and an excellent finish on both the upper and lower side of the Workpiece.

Crafted for unmatched precision and durability, CMT DLCS Spiral Bit is the ultimate tool for professionals seeking the highest quality and performance from their CNC machinery. Whether tackling ordinary or challenging materials, this spiral bit represents the pinnacle of industrial CNC tool technology, offering exceptional quality and value.

Extended Tool Life: The DLCS chrome coating, a modified diamond-like carbon layer enhanced with chromium nitride, provides up to three times the lifespan of uncoated tools by preventing heat damage and wear.

Used for cutting, copying, panel-sizing and any routing application on solid wood, wooden composites, plastic materials and laminates. Use a high feed speed on well clamped workpieces. Can be used on machining centres, point to point boring machines, CNC routers and hand held routers equipped with chucks or adapters

Image Is For Illustration Purposes Only
