12mm dia x 55mm reach CNC S=12mm Lockcase Spiral Router 2 Flute Positive R/H Kyocera

Kyocera Unimerco 12mm dia x 55mm reach CNC S=12mm Z=2 Positive Lockcase Spiral Router

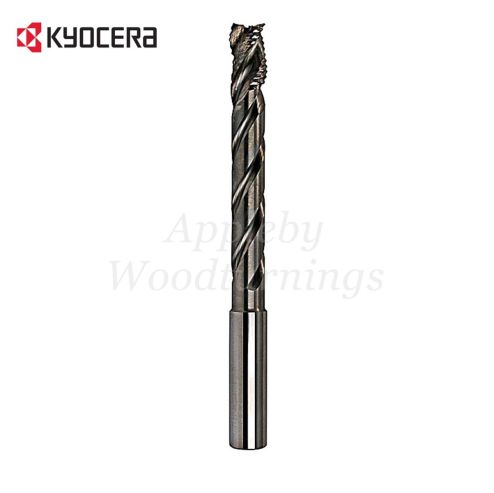

CNC Solid Carbide Lockcase Spiral Router Cutter

This quality CNC spiral has been manufactured by Kyocera Unimerco from the best quality micro grain carbide, increasing tool life and performance.

The tool geometry is designed for use in CNC machines for cutting lock sets and face plates in doors.

The Tool dimensions are:-

Diameter (D) = 12mm

Cut length (I₁) = 15mm

Depth Reach (I) = 55mm

Total Length (L) = 100mm

Shank Diameter (S) = 12mm

Positive Chip Flow (Up-cut)

Z = 2 (2 Flute)

Right Hand Rotation

This tool is a Z=2 (2 Flute) Pos/R (positive chip flow extracting the waste upwards towards the extraction unit).

We offer a full range of Spiral routers for almost every application.

Our standard program ranges in size from 6-25mm with various cut lengths depending on diameter.

Most sizes are available in positive and negative, Left Hand and Right Hand rotation, 2 flute or 3 flute designs along with full custom tools on special request.

-----------------------

Our in-house CNC commissioning engineer Jeremy Appleby will be happy to provide Free Of Charge assistance to optimise your applications / parameters.

NB- Pictures shown are for advert purposes only and may not show correct diameter and length.

Item will be exactly as described above and supplied in a plastic packaging container for safe transportation.
