1" (25.4) Hollow Square Japanese Pattern Mortice Chisel & Bit Set Made By Nakahashi
Mortise size: 25.4 mm (1") (A)
Chisel length: 150 mm (B)
Depth of cut: 130 mm (B1)
Chisel shank length: 40 mm (C)
Auger bit shank length: 153 mm (D)
Chisel shank diameter: 30.1 mm (E)
Auger bit shank diameter: 12.7 mm (1/2") (F)
Material = Japanese Carbon SteelÂ
Finely ground Chisel is slightly tapered from the tip by 0.1mm to allow easy removal from the Mortice.
A deep waste slot prevents the waste material becoming jammed around the Auger.
The Auger bit has one spiral flute designed for rapid chip ejection up and out of the exit slot.

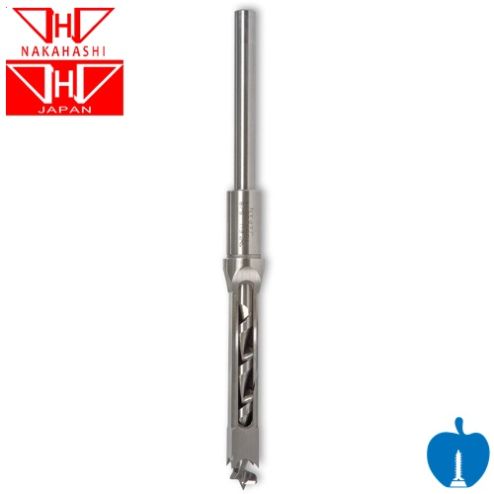

Image Is For Illustration purposes Only.Â
| Price | 168.00 |
|---|---|
| Brand | Nakahashi (Japan) |
| Chisel Cut Size | 1" |
| Max Cutting Depth | 120mm |
| Chisel Shank Diameter | 1" 3/16" (30.16mm) |
| Auger Shank Diameter | 1/2" (12.7mm) |
